150 lb. Ring Gasket ANSI Flange Dimension Specifications
Proper sizing is key to maintaining an effective seal. Use this chart to determine the right ring gasket size for your ANSI/ASME Class 150 pipe flanges. If you need further assistance in choosing the right gasket for your application, our applications engineers are here to help.

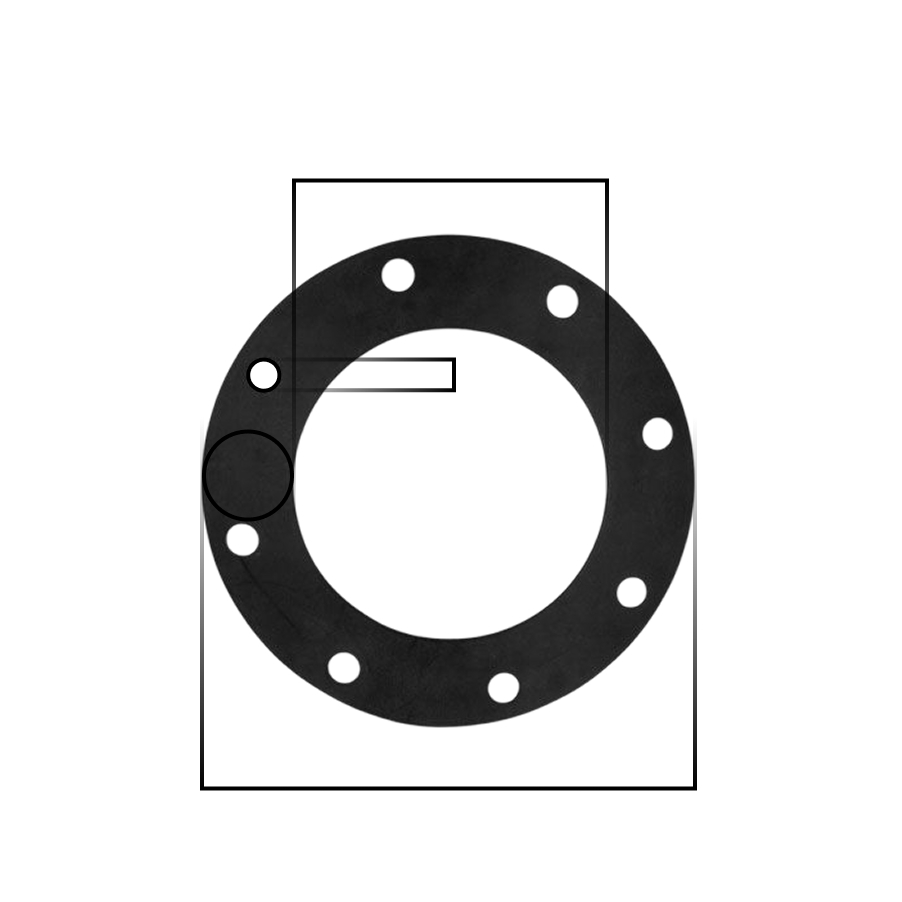

150lb Ring Gasket ANSI Flange Dimensions
| Nominal Pipe Size | Gasket I.D. | Gasket O.D. |
|---|---|---|
| 1/2" | 27/32" | 1 7/8" |
| 3/4" | 1 1/16" | 2 1/4" |
| 1" | 1 5/16" | 2 5/8" |
| 1 1/4" | 1 21/32" | 3" |
| 1 1/2" | 1 29/32" | 3 3/8" |
| 2" | 2 3/8" | 4 1/8" |
| 2 1/2" | 2 7/8" | 4 7/8" |
| 3" | 3 1/2" | 5 3/8" |
| 3 1/2" | 4" | 6 3/8" |
| 4" | 4 1/2" | 6 7/8" |
| 4 1/2" | 5" | 7" |
| 5" | 5 9/16" | 7 3/4" |
| 6" | 6 5/8" | 8 3/4" |
| 7" | 7 5/8" | 10" |
| 8" | 8 5/8" | 11" |
| 10" | 10 3/4" | 13 3/8" |
| 12" | 12 3/4" | 16 1/8" |
| 14" | 14" | 17 3/4" |
| 15" | 15" | 19" |
| 16" | 16" | 20 1/4" |
| 18" | 18" | 21 5/8" |
| 20" | 20" | 23 7/8" |
| 22" | 22" | 26" |
| 24" | 24" | 28 1/4" |
| 26" | 26" | 30 1/2" |
| 28" | 28" | 32 3/4" |
| 30" | 30" | 34 3/4" |
| 32" | 32" | 37" |
| 34" | 34" | 39" |
| 36" | 36" | 41 1/4" |
| 38" | 38" | 43 5/8" |
| 40" | 40" | 45 5/8" |
| 42" | 42" | 48" |
| 46" | 46" | 52 1/8" |
| 48" | 48" | 54 1/2" |
| 50" | 50" | 56 1/2" |
| 52" | 52" | 58 3/4" |
| 54" | 54" | 61" |
| 60" | 60" | 67 1/2" |
| 66" | 66" | 74 1/4" |
| 72" | 72" | 80 3/4" |
| 84" | 84" | 93 1/2" |
| 96" | 96" | 106 1/4" |
| – | – | – |
Standard thickness is 1/16″ and 1/8″. Other thicknesses available by special order.
