How GORE® Protective Vents Work

In the realm of sealing solutions, GORE® Protective Vents stand out for their exceptional ability to enhance the performance and reliability of electronic enclosures in various applications. Whether dealing with outdoor lighting, telecommunications equipment, or heavy machinery, understanding the technology behind GORE® vents can provide valuable insights into their benefits and applications.

The Science of Venting

At the core of GORE® vents' functionality is advanced venting technology that leverages innovative materials and design principles to achieve superior results. The primary purpose of these vents is to equalize pressure, reduce condensation, and protect sensitive electronics from environmental contaminants. Here’s how they accomplish these tasks:

Discover the advanced technology behind Gore Vents and how they enhance the performance and reliability of electronic enclosures. Learn about pressure equalization, condensation reduction, and contaminant protection, along with various types of Gore Vents and their applications across multiple industries.

Pressure Equalization

GORE® Protective Vents incorporate a microporous membrane made of expanded polytetrafluoroethylene (ePTFE). This membrane allows air to pass through while preventing the ingress of liquids and particles. By permitting airflow, the vents equalize pressure differences between the interior and exterior of the enclosure, which is crucial for preventing stress on seals and extending the lifespan of the enclosure.

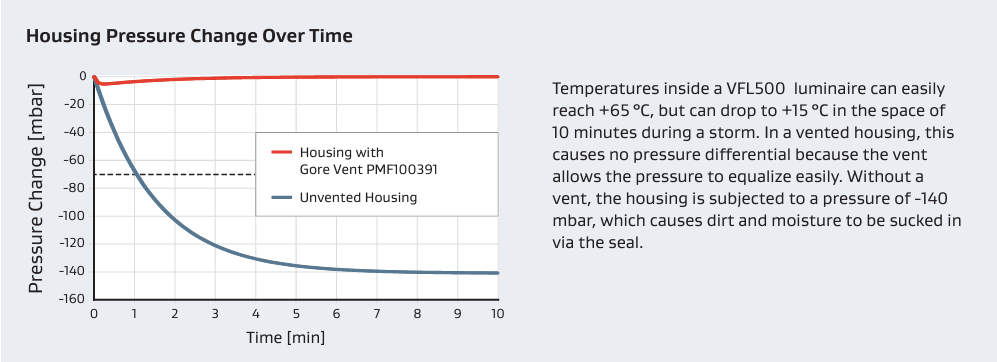

Description of the image — To achieve this level of efficiency, pressure fluctuations in the housing must be avoided in order to prevent a vacuum. Caused by the enormous temperature differences between the LEDs, which heat up during operation, and the cooler ambient air, such pressure fluctuations would cause the acrylic cover to deform and so alter the illumination characteristics of the emitted light.

Condensation Reduction

Condensation is a significant challenge in many electronic applications, particularly those exposed to varying temperatures and humidity levels. GORE® Vents' ePTFE membrane effectively manages moisture by allowing water vapor to escape from the enclosure. This venting action helps maintain a dry environment inside the enclosure, thereby reducing the risk of corrosion and electrical failures.

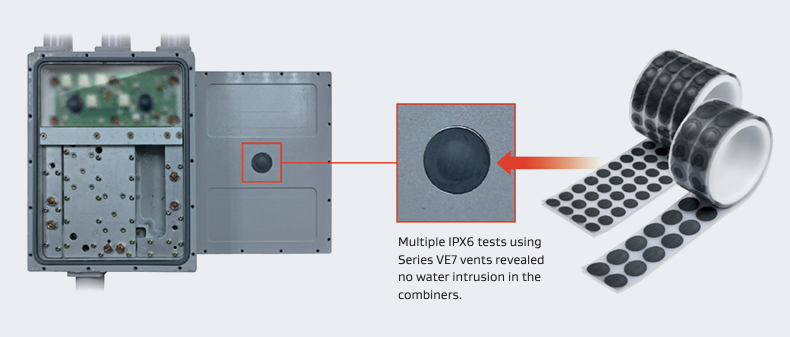

Reliably prevents water ingress problems in the future, and effectively equalizes pressures, to reduce strain on housing seals.

Contaminant Protection

The ePTFE membrane in GORE® Vents acts as a barrier against contaminants such as dust, dirt, salts, and other particles. The membrane’s oleophobic properties prevent oils and other non-water-based liquids from penetrating the enclosure, ensuring that sensitive components remain protected from harmful substances that could impair their function.

WATCH: GORE® Protective Vents in Action

Learn how versatile GORE® Vents are and how they are used in industrial vehicles, outdoor lighting and outdoor electronics.

Click each video below to learn more.

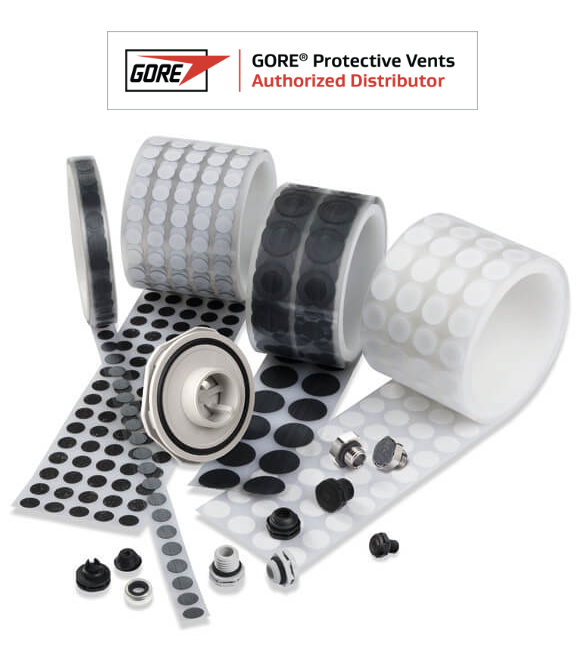

Types of GORE® Protective Vents

Gore offers a variety of vent types to suit different applications and installation requirements:

Adhesive Vents: These low-profile vents are easy to integrate into designs with high levels of environmental protection and airflow capability.

Snap-In Vents: Ideal for high-throughput or manual production environments, snap-in vents offer quick and reliable installation for enclosure volumes up to 30 liters.

Screw-In Vents: Designed for rugged environments, these vents provide durable protection and withstand mechanical stresses. They are available in various performance options, including the IK10-rated PolyVent Stainless Steel.

Acoustic Vents: Specifically for speaker and microphone applications, these vents enhance sound transmittance while maintaining high ingress protection.

>>RELATED: Gore Case Study - Efficiency of LED Luminaires Significantly Increased

Applications and Benefits

GORE® Vents are versatile and used across multiple industries, including telecommunications, solar energy, industrial machinery, battery, and aerospace.

Some of the key benefits of GORE® Vents include:

Extended Service Life: By preventing internal pressure buildup and reducing condensation, Gore Vents help extend the operational life of electronic devices.

Design Flexibility: Available in multiple forms, GORE® Vents can be easily integrated into various enclosure designs, providing flexibility in production and application.

Cost Efficiency: By enhancing the reliability and longevity of electronics, GORE® Vents contribute to reduced maintenance costs and fewer replacements, offering significant cost savings over time.

>>RELATED: Gore Case Study - Ensure RF System Reliability with the Right IP Rating for Heavy Rain Conditions

Sealing Devices is an authorized distributor of Gore Protective Vents

The advanced technology behind GORE® Vents makes them an indispensable component in modern sealing solutions. By effectively managing pressure, condensation, and contaminants, these vents play a critical role in ensuring the reliability and performance of electronic enclosures in challenging environments.

For more information or to discuss your specific application needs, reach out to our applications engineering team. We're here to help you find the best sealing solutions for your challenges.
